SKU: 6LCC270450FLA

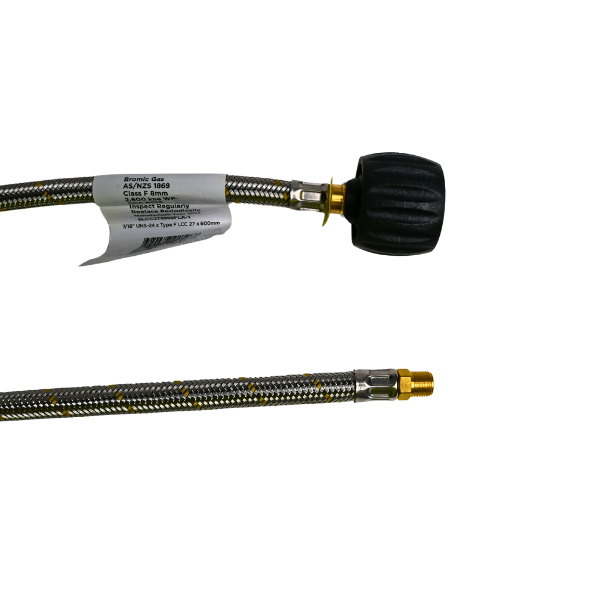

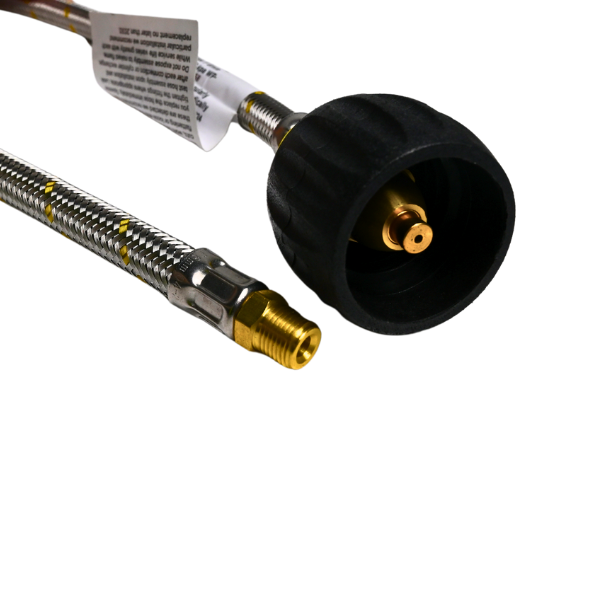

6mm SS Pigtail 7/16-24 I/Flare x Type 27 450mm

Bromic flexible stainless steel Class F pigtail assembly manufactured in accordance with AS1869 and approved by the Australian Gas Association for use with gas. Includes type 27 / LCC27 connection.

Features

AGA Approved

Maximum working pressure 2600 kPa

Working temperature -20°C to +100°C

Approved to AS/NZS 1869

Needs to be assembled into inlet with AC29 adaptor (5050420), 1/4” NPT M (into regulator) x 7/16”x24 NS F

Specifications

Product Number

6LCC270450FLA

Diameter(mm)

6

AGA Approval Number

6223

Max. Working Prssure (kPa)

2600

Min Working Temperature

-20

Max. Working Temperature

100

Brands

Bromic

Thread Size

7/16"

Thread Type

Inverted Flare, LCC27

Connector

M

Fuel type

LPG

Material

Stainless Steel

Hose Length (mm)

450

Gas Hose Class

F

Inlet Connection ( Connector )

M

Inlet Connection ( Thread Size )

7/16"-24 UNS

Inlet Connection ( Thread Type )

Inverted Flare

Outlet Connection ( Connector )

M

Outlet Connection ( Thread Size )

7/16”-24 UNS

Outlet Connection ( Thread Type )

LCC27 / Type 27
