SKU: 6360510

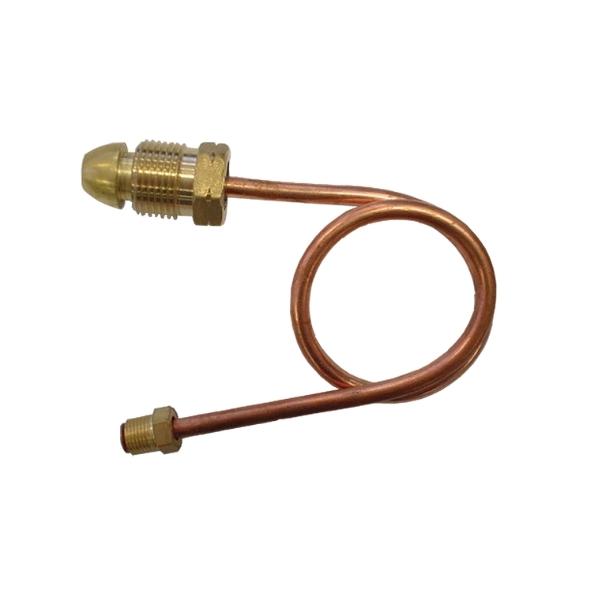

6mm Copper Pigtail 7/16″- 24 I/Flare x POL 450mm + Cap

Bromic’s copper Class C pigtail assemblies are manufactured in accordance with AS1869. Comes with cap. For use with LPG regulator connection to cylinders.

Features

High pressure, low temperature hose type
Maximum working pressure 2600 kPa
Working temperature -20°C to +65°C
Approved to AS/NZS 1869:2012

Specifications

Product Number

6360510

Max. Working Prssure (kPa)

2600

Min Working Temperature

-20

Max. Working Temperature

65

Brands

Bromic

Thread Size

7/16"

Thread Type

Inverted Flare, POL

Connector

M

Fuel type

LPG

Material

Copper

Hose Length (mm)

450

Gas Hose Class

C

Inlet Connection ( Connector )

Inverted Flare

Inlet Connection ( Thread Size )

7/16"-24

Outlet Connection ( Connector )

M

Outlet Connection ( Thread Type )

POL
