SKU: 6SCH0600

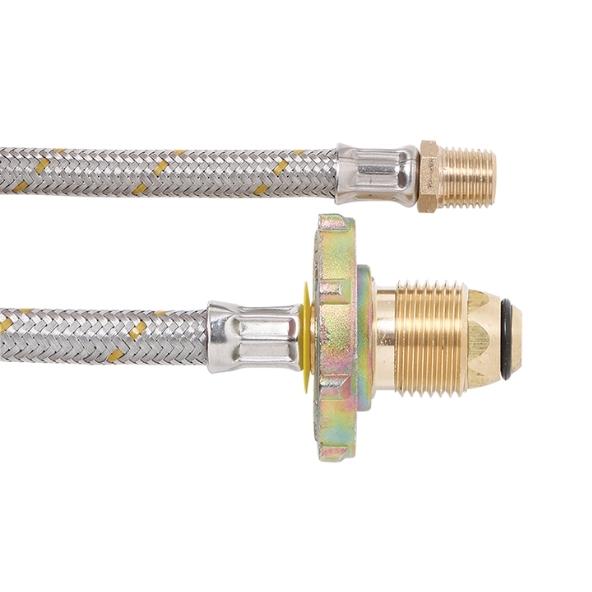

6mm Stainless Steel Pigtail 1/4″ NPT M x POL H/Wheel (600mm)

Bromic flexible stainless steel Class F pigtail assemblies are manufactured in accordance with AS1869 and approved by the Australian Gas Association for use with gas. 1/4″ NPT M x POL H/Wheel connection, 600mm length.

Features

AGA Approved
Maximum working pressure 2600 kPa
Working temperature -20°C to +100°C
Approved to AS/NZS 1869:2012

Specifications

Product Number

6SCH0600

Diameter(mm)

6

AGA Approval Number

6223

Max. Working Prssure (kPa)

2600

Min Working Temperature

-20

Max. Working Temperature

100

Brands

Bromic

Thread Size

1/4”

Thread Type

NPT, POL

Connector

M

Fuel type

LPG

Material

Stainless Steel

Hose Length (mm)

600

Gas Hose Class

F

Inlet Connection ( Connector )

M

Inlet Connection ( Thread Size )

1/4"

Inlet Connection ( Thread Type )

NPT

Outlet Connection ( Thread Type )

POL
