SKU: 1210450

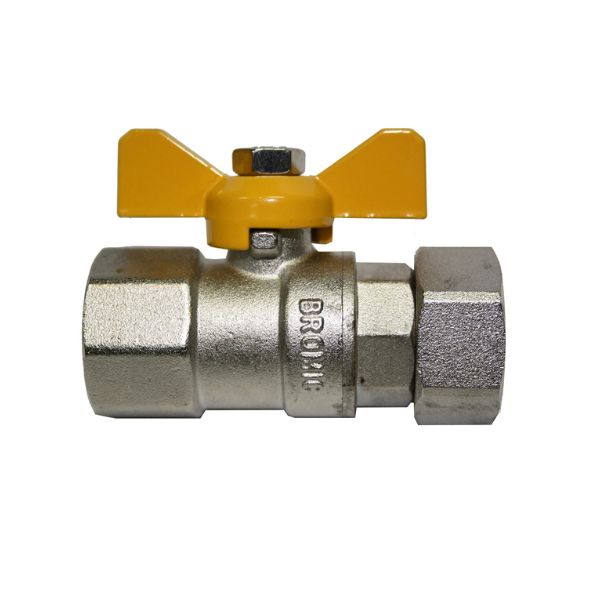

Ball Valve Gas RP3/4 x G3/4 Nut Nickel Pl B Hand

Bromic’s range of water female x loose nut ball valves are manufactured with high quality brass providing extensive durability..

Watermark approved for use with potable water, these valves are 100% pressure tested and offer excellent flexibility with a working temperature range between -20°C to 120°C.

Features

High quality brass construction with conical P.T.F.E. stem sealing system

Working temperature range between 0°C to 60°C

Maximum operating pressure at nominal temperatures of 2600kPa

Suitable for use with vacuum

100% pressure tested

Approved by the Australian Gas Association for use with natural gas and LPG

Used for kitchen and backyard applications

Specifications

Product Number

1210450

Dimension A (mm)

46.5

Dimension B (mm)

57

Dimension C (mm)

72

Pressure Rating (kPa)

2600

AGA Approval Number

7423

Working Temperature Range

-20°C to 120°C

For use with

LPG (Propane), NG, Water

Box Quantity

16

Thread Size

3/4"

Thread Type

G, RC

Brands

Bromic

Material

Brass, Nickel Plated

Handle Type

T-handle (Butterfly)

Connector

F

Inlet Connection ( Connector )

F

Inlet Connection ( Thread Size )

3/4"

Inlet Connection ( Thread Type )

RC

Outlet Connection ( Connector )

F

Outlet Connection ( Thread Size )

3/4"

Outlet Connection ( Thread Type )

G Nut

Related files
File name Type Access

Requires Tradie Account

pdf.svg

T-Handle Gas Ball Valve (Loose Nut) – Product Info

100.57 KB

pdf.svg

T-Handle Gas Ball Valve (Loose Nut) – Product Info

100.57 KB

Download Open In New Tab
Product Information Sheet
