SKU: 1210437

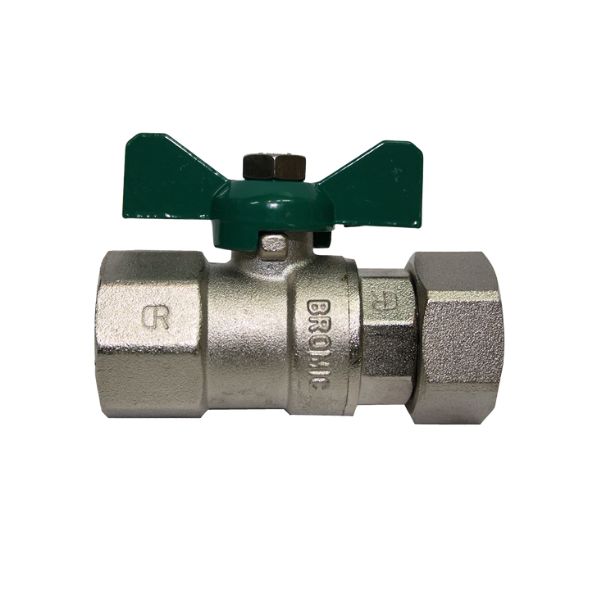

Ball Valve Water DR RP3/4 x G3/4F Nickel Pl B Hand

Bromic’s range of water female x loose nut ball valves are manufactured with high quality brass providing extensive durability.

Watermark approved for use with potable water, these valves are 100% pressure tested and offer excellent flexibility with a working temperature range between -20°C to 120°C.

Features

High quality brass construction
Working temperature range between -20°C to 120°C
Maximum operating pressure at nominal temperatures of 2600kPa
Suitable for use with vacuum
100% pressure tested
Approved by the Australian Gas Association for use with natural gas and LPG
Used for kitchen and backyard applications

Specifications

Product Number

1210437

Dimension A (mm)

46.5

Dimension B (mm)

57

Dimension C (mm)

72

Pressure Rating (kPa)

2600

AGA Approval Number

7425

Working Temperature Range

-20°C to 120°C

For use with

LPG (Propane), NG, Water

Box Quantity

16

Thread Size

3/4"

Thread Type

G, RC

Brands

Bromic

Material

Nickel Plated

Handle Type

T-handle (Butterfly)

Connector

F

Inlet Connection ( Connector )

F

Inlet Connection ( Thread Size )

3/4"

Inlet Connection ( Thread Type )

G

Outlet Connection ( Connector )

F

Outlet Connection ( Thread Size )

3/4"

Outlet Connection ( Thread Type )

RC

Related files
File name Type Access

Requires Tradie Account

pdf.svg

Lever Handle Water Ball Valves – Product Info

125.57 KB

pdf.svg

Lever Handle Water Ball Valves – Product Info

125.57 KB

Download Open In New Tab
Product Information Sheet
