SKU: 1210026

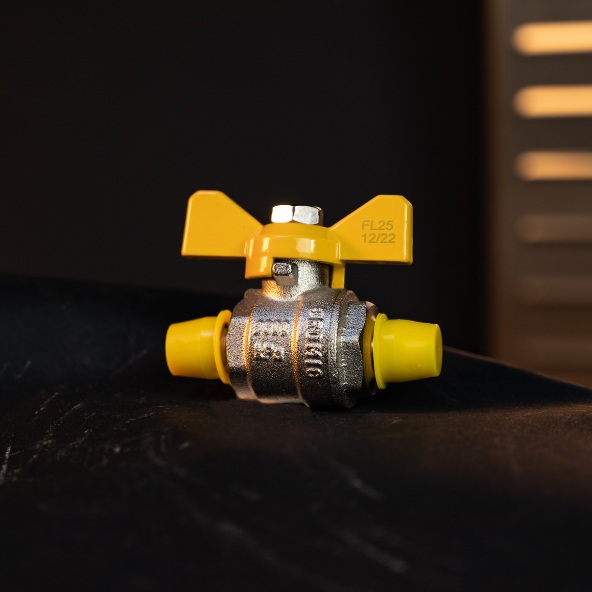

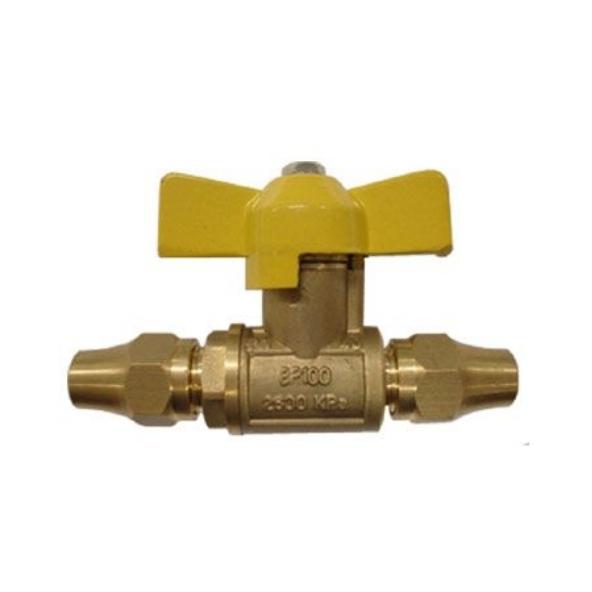

SAE Flared T-Handle Ball Valve, 5/16″ SAE no/nut

Bromic’s range of gas flare x flare ball valves are manufactured with high quality brass and feature a P.T.F.E. stem sealing system, providing extensive durability with a maximum operating pressure of 1050kPa at nominal temperatures.

Features

High quality brass construction with conical P.T.F.E stem sealing system
Working temperature range between -20C and +120C
Maximum operating pressure at nominal temperatures of 1050kPa
Suitable for use with vacuum
100% pressure tested
Approved by the Australian Gas Association for use with natural gas and LPG
Used for kitchen and backyard applications

Specifications

Product Number

1210026

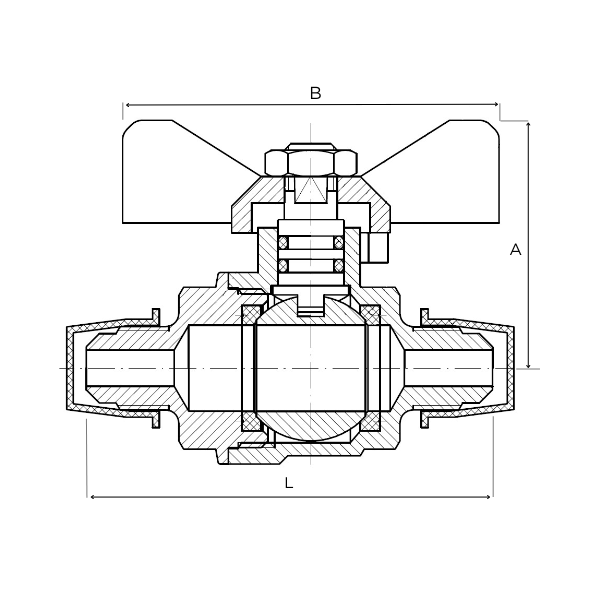

Dimension A (mm)

39

Dimension B (mm)

57

Dimension L (mm)

63

Pressure Rating (kPa)

1050kPa

AGA Approval Number

7423

Working Temperature Range

-20°C to 120°C

Thread Size

5/16”

Thread Type

SAE

Brands

Bromic

Material

Brass

Handle Type

T-handle (Butterfly)

Inlet Connection ( Thread Size )

5/16"

Inlet Connection ( Thread Type )

SAE
